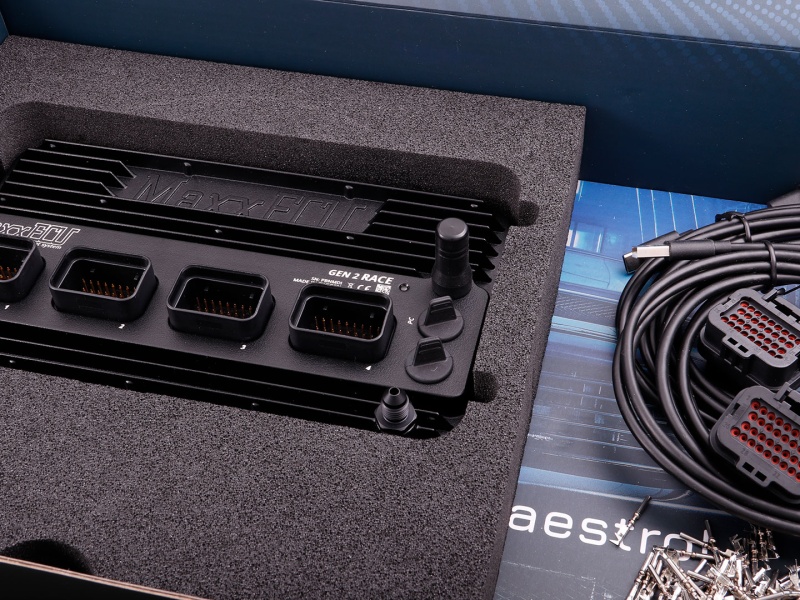

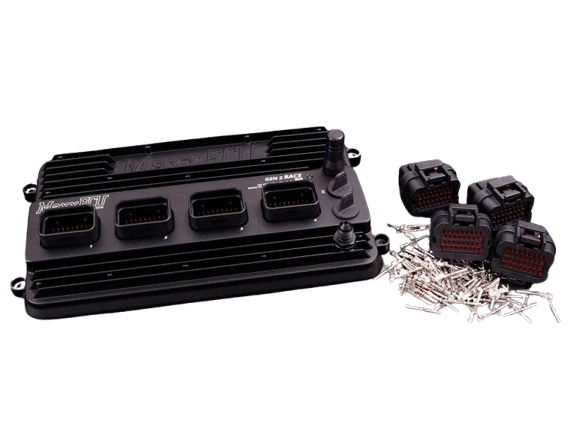

MaxxECU GEN2 RACE Basic

Beschreibung

MaxxECU GEN2 RACE Basic

MaxxECU GEN2 RACE Daten

Superseal 1.0 connectors.
550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread.
3-axis accelerometer (up to 8 G).
ARM dual core CPU.
6-22V operating voltage.
16GB internal log capacity, 1000Hz, all 1600+ channels.
USB-C 480mbit/s (MTune PC communication).
USB-C 12mbit/s (tablet charging).*
WIFI communication with MTune and MDash.*
Bluetooth connectivity with MDash.
Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control.
Resolution on ignition: 0.1 degrees.
Resolution on injectors: 0.001 ms.
Performs fuel and ignition calculations 3,000 times per second.
200Hz sampling rate on all EGT inputs.
2000Hz sampling rate on analog/digital inputs.
Weight: 700g.
240x138x35mm including protruding connectors.
Black powder-coated aluminium case.
All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.

*WIFI and USB Port2 not yet supported for communication – coming in 2026.

MaxxECU GEN2 RACE inputs

8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
24 Analog inputs (selectable pullups).

8 Exhaust Gas Temperature inputs (TYPE-K).
Dual wideband lambda (LSU 5.2/4.9/4.2).
Dual knock sensor input.

MaxxECU GEN2 RACE outputs

16 injectors (Peak-hold high/low impedance) / GP outputs.
12 IGN / GP outputs (selectable +5V/12V/GND).
8 GP Outputs (GND).
4 GP Outputs (+12V).
4 GP Outputs (H-bridge/E-Throttle).
